See what’s inside the base and why we chose each component.
Explore the hardwareSelect a component to find out more.

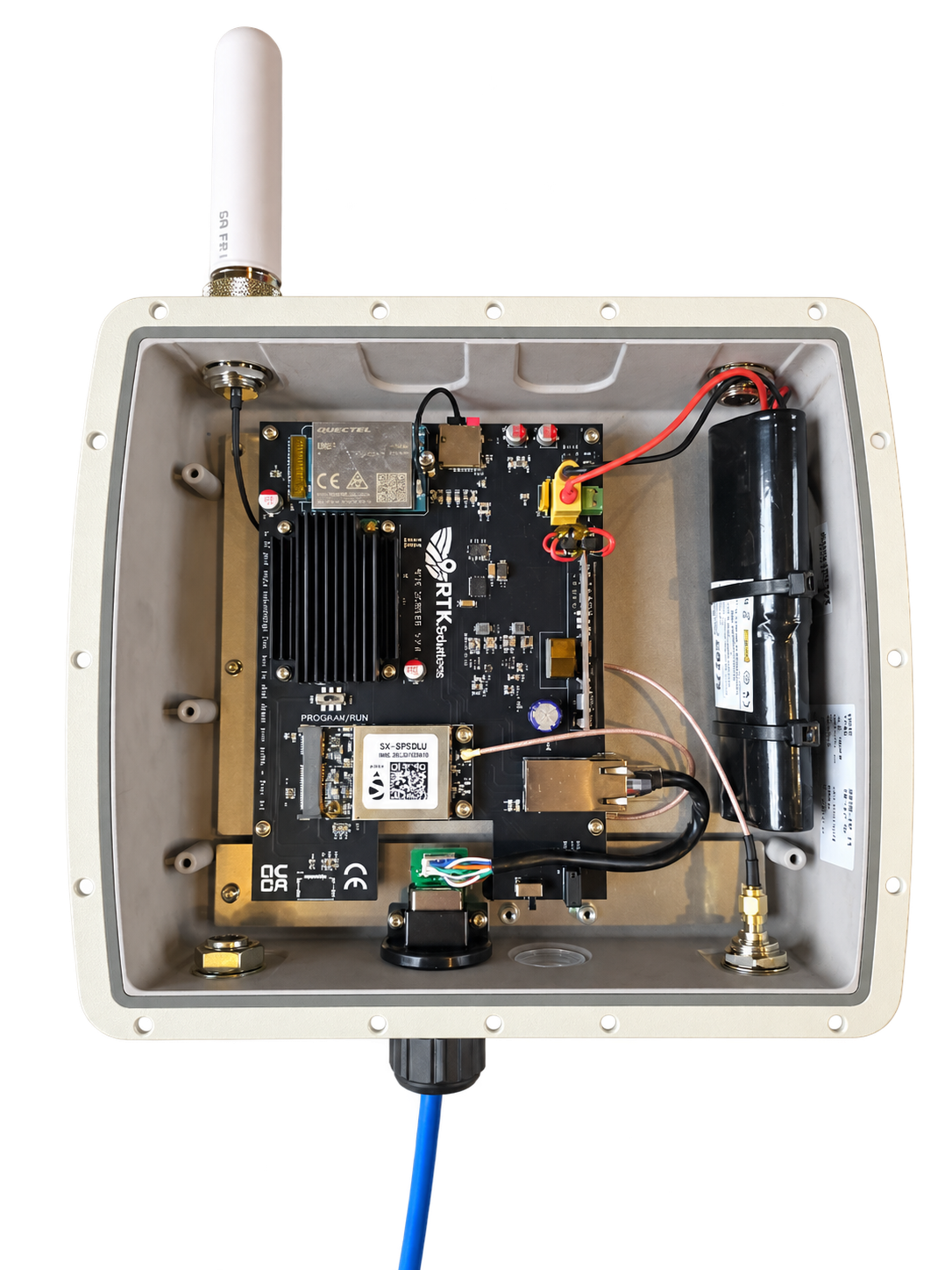

Inside our base station · select a numbered component
The base uses a dedicated GNSS receiver, a Raspberry Pi Compute Module and a 4G modem on our own carrier board. Plug-in modules make repairs and replacements straightforward.
One Ethernet cable carries power and data. The carrier board charges the battery and provides UPS backup during a power cut. Approximately 10–12 hours of battery runtime at around 20°C. Runtime varies with battery condition and power use.
Why we chose each part. Photos are representative; supplied versions may vary.
Runs the base station software and manages its connections.
Raspberry Pi gives us a compact computer with strong software support and a widely supported Linux platform. The plug-in format makes it straightforward to replace or service without changing the whole carrier board.
Module version and configuration are matched to your base station.
Made in the UK.
Manufacturer details ↗2-year warranty.
Receives satellite signals for RTK corrections. Pre-configured with the correct base files for your existing setup, so guidance lines and boundaries stay in place.
Septentrio specialises in high-precision GNSS. Its mosaic range tracks multiple satellite systems and frequencies, with technology to reduce radio interference and errors from reflected signals. These are useful strengths for a base that needs to produce consistent measurements throughout the working day. We chose Septentrio for its receiver technology and focus on reliable positioning in demanding conditions.
Replacement receivers are supplied with the correct base files to match your existing installation.
Designed in the Netherlands; made in Spain.
Manufacturer details ↗2-year warranty.

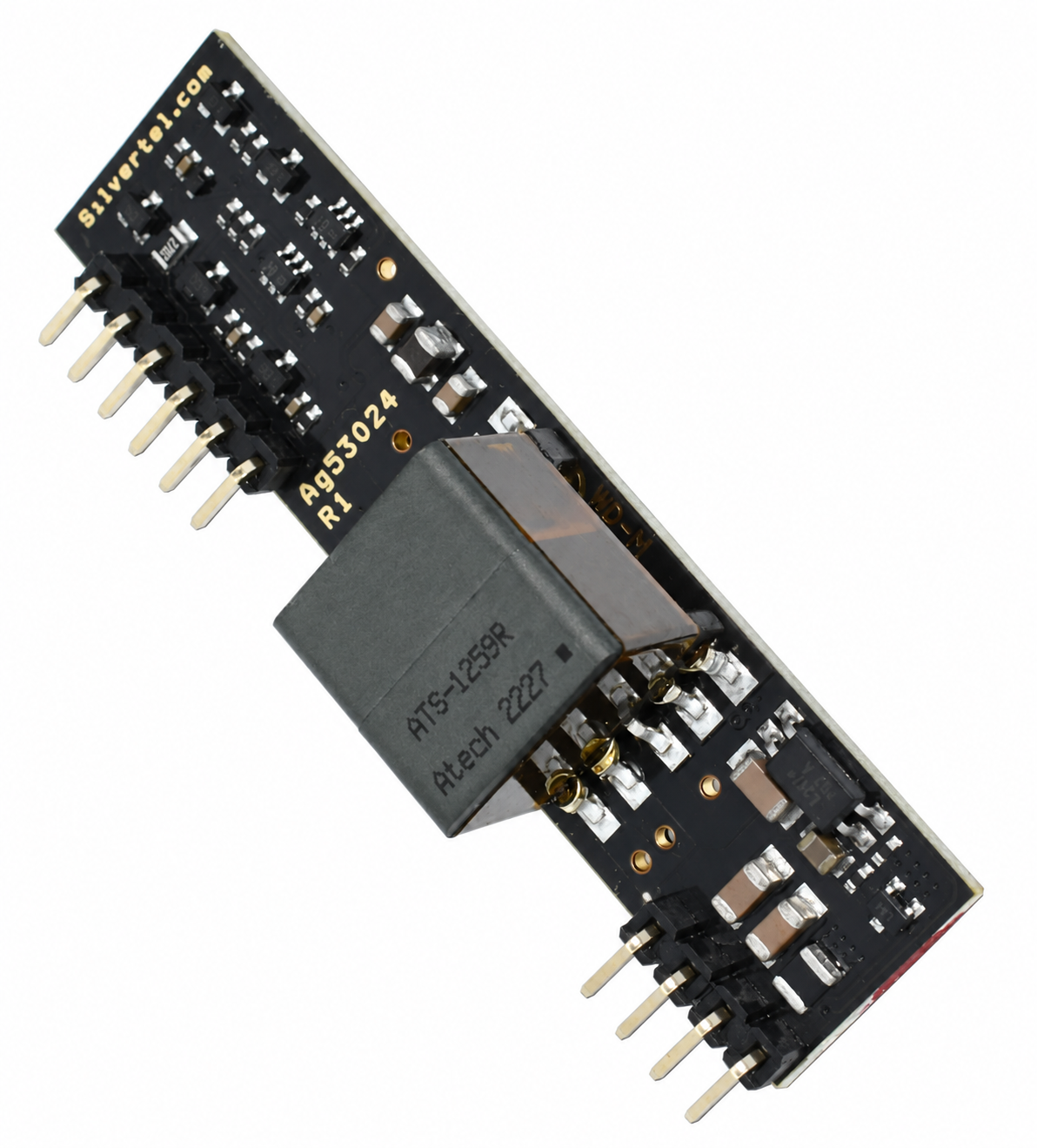

Takes power from the Ethernet cable to supply the base.
Silvertel is an industry leader in Power over Ethernet modules.
Soldered to and included with the carrier board.
Manufacturing origin unconfirmed.
Manufacturer details ↗
Connects the base to the internet over the mobile network.
Quectel is a leading supplier of cellular modules. The EM05 gives the base a compact 4G connection where a suitable mobile signal is available.
Requires a SIM and mobile data service. The regional version is matched to your base.
Supplied-unit origin unconfirmed; China is listed for the EM05-G.
Manufacturer details ↗2-year warranty.

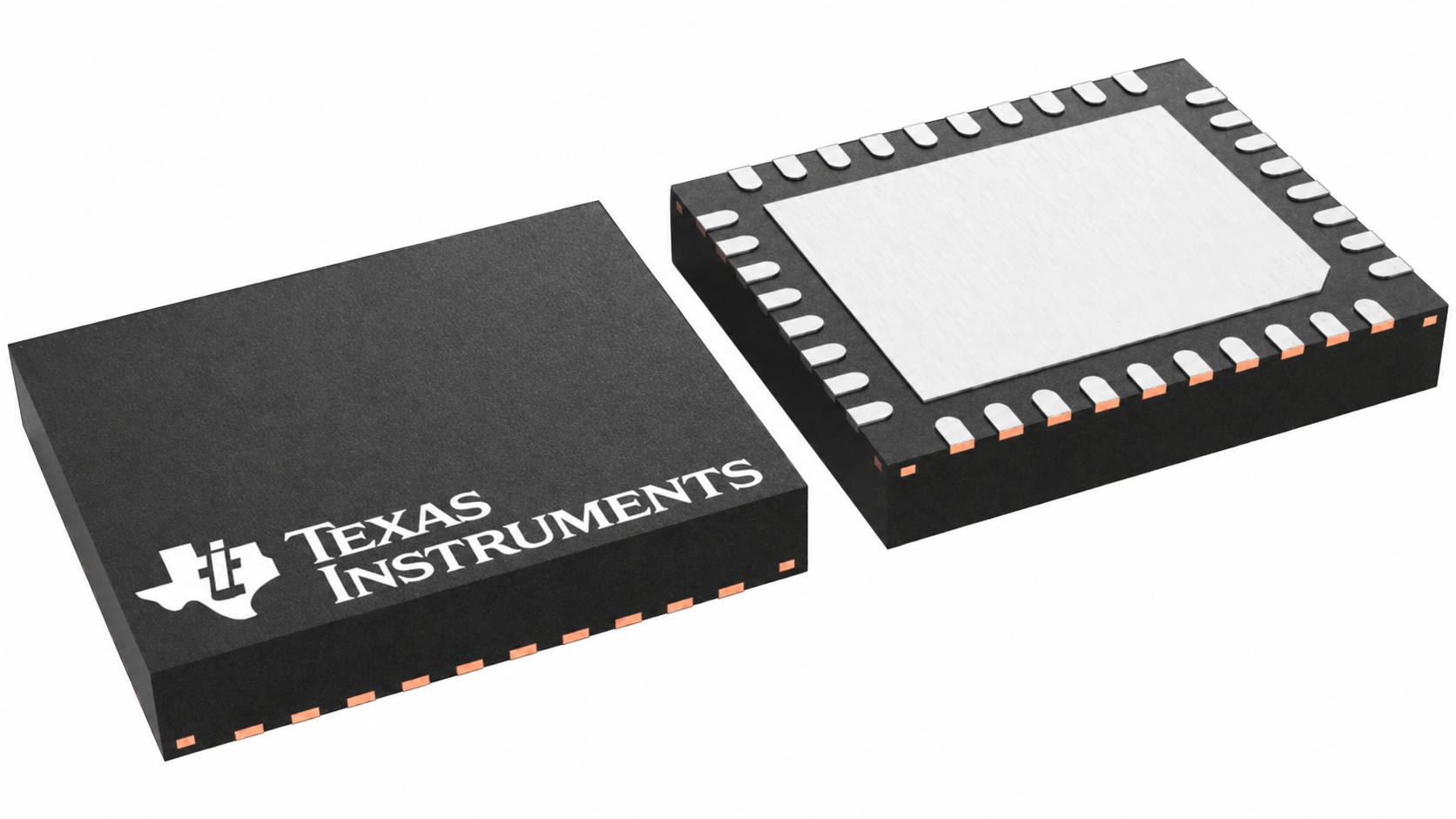

Controls battery charging and power flow on the carrier board.
Texas Instruments is a leader in power-management electronics. The BQ25750 combines battery charging and power-path control in one controller.
Mounted on the back of the carrier board and included with it.
Manufacturing origin unconfirmed.
Manufacturer details ↗
Connects the modules, charges the battery and provides UPS backup during a power cut.
Our board brings the computing, satellite receiver, modem and power supply together. Built-in charging and UPS control keep the base running from its battery when mains power is lost, while the plug-in modules can be replaced individually.
UPS backup needs a connected, charged battery. Approximately 10–12 hours of battery runtime at around 20°C. Runtime varies with battery condition and power use.
Manufacturing origin unconfirmed.
5-year warranty.
Carrier board part exchange for replacements: £850.00 ex VAT (£1,020.00 inc VAT). View replacement options.
A protected 7.4 V, 5200 mAh pack using Samsung 18650 cells. Approximately 10–12 hours of battery runtime at around 20°C.
Samsung is one of the leading names in rechargeable battery cells. We chose its 18650 cells for the base’s backup supply, with a protected pack that fits inside the enclosure.
Approximately 10–12 hours of battery runtime at around 20°C. Runtime varies with battery condition and power use.
Pack assembly origin unconfirmed.
2-year warranty.
An 8 GB industrial microSD card with our base station software pre-installed.
Kingston is a well-established name in memory and storage. Its Industrial card uses pSLC flash and wear levelling to handle repeated writes, making it a good choice for a base that runs continuously.
Supplied with RTK Solutions software pre-installed.
Made in Taiwan.
Manufacturer details ↗2-year warranty.
